Application Blocks

Application blocks are the main building bricks of your infrastructure. They represent your web applications, APIs, or frontends.

Available blocks​

  • Laravel — PHP application with the Laravel framework
  • React — React frontend application
  • Angular — Angular frontend application
  • Vue.js — Vue.js frontend application
  • Docker — Custom Docker container for any other framework or language

A configuration that reveals itself progressively​

Application blocks perfectly illustrate Fransys's dynamic approach. Instead of immediately presenting all possible parameters, the interface enriches step by step as you configure your block.

Example: the Laravel block​

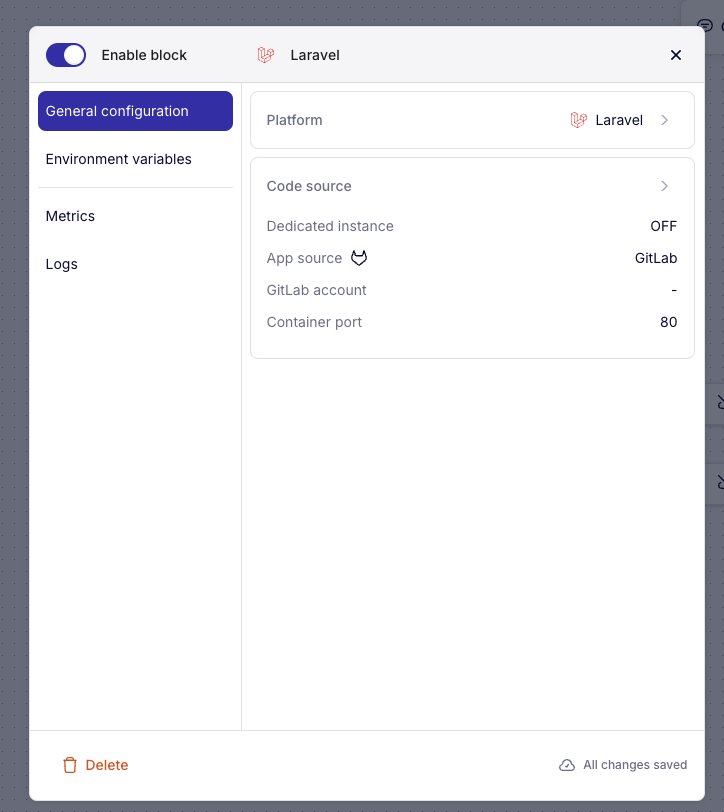

Step 1 — The block has just been added. The interface displays only the essential parameters: the platform, the code source, and the port.

Laravel block — initial configuration

At this stage, the sidebar shows only two tabs: General configuration and Environment variables, plus Metrics and Logs. No noise, no unnecessary fields.

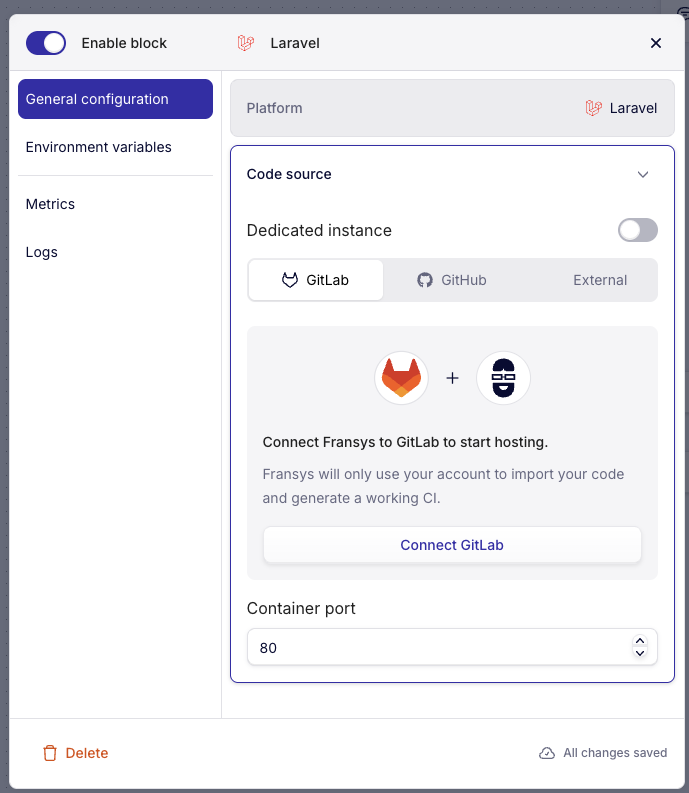

Step 2 — You connect your Git provider. New fields appear: the choice between GitLab, GitHub, or External, and the invitation to connect your account.

Laravel block — GitLab connection

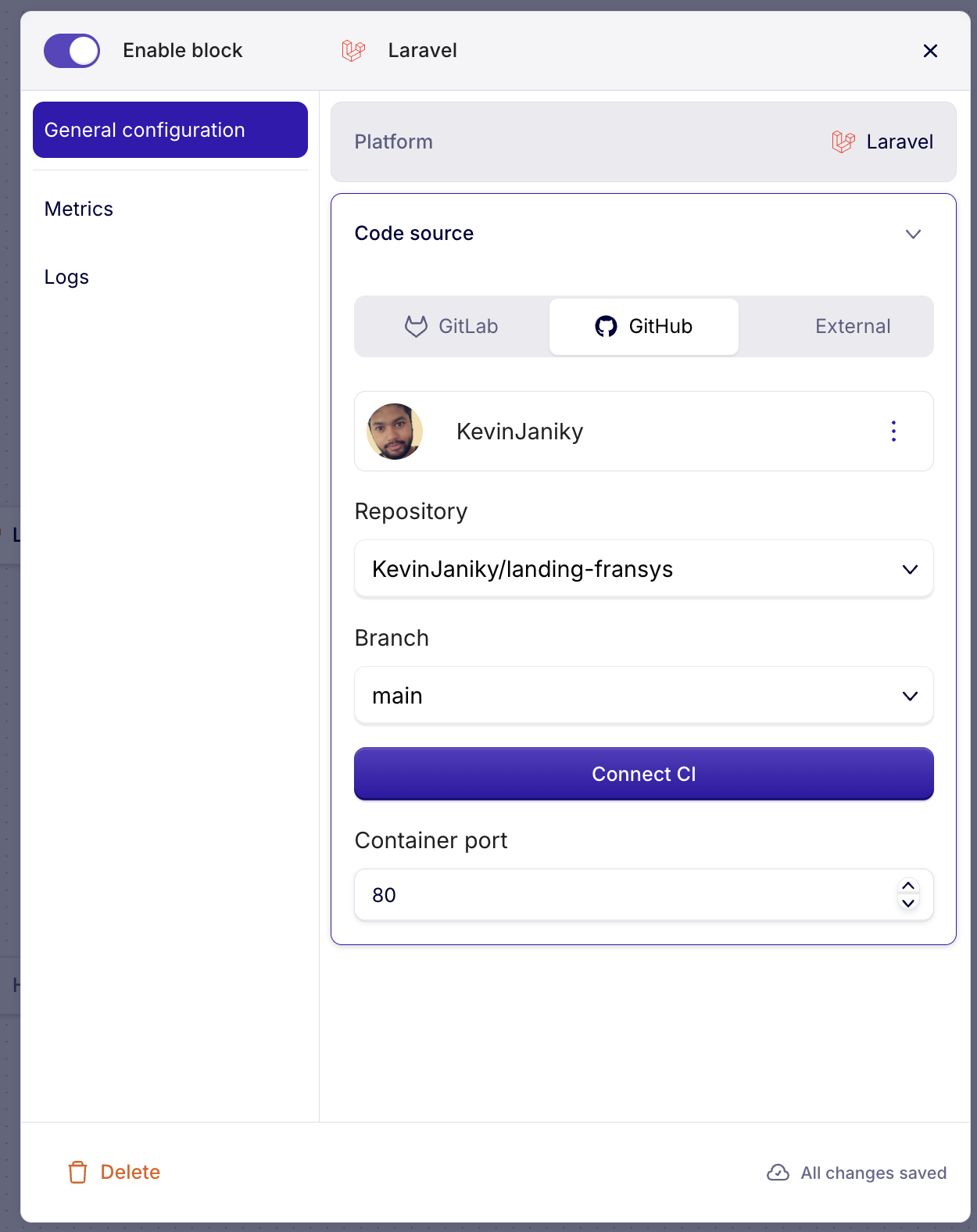

Step 3 — You select a repository. Once your Git account is connected, the interface reveals the repository and branch selectors, as well as the Connect CI button.

Laravel block — repository and branch selected

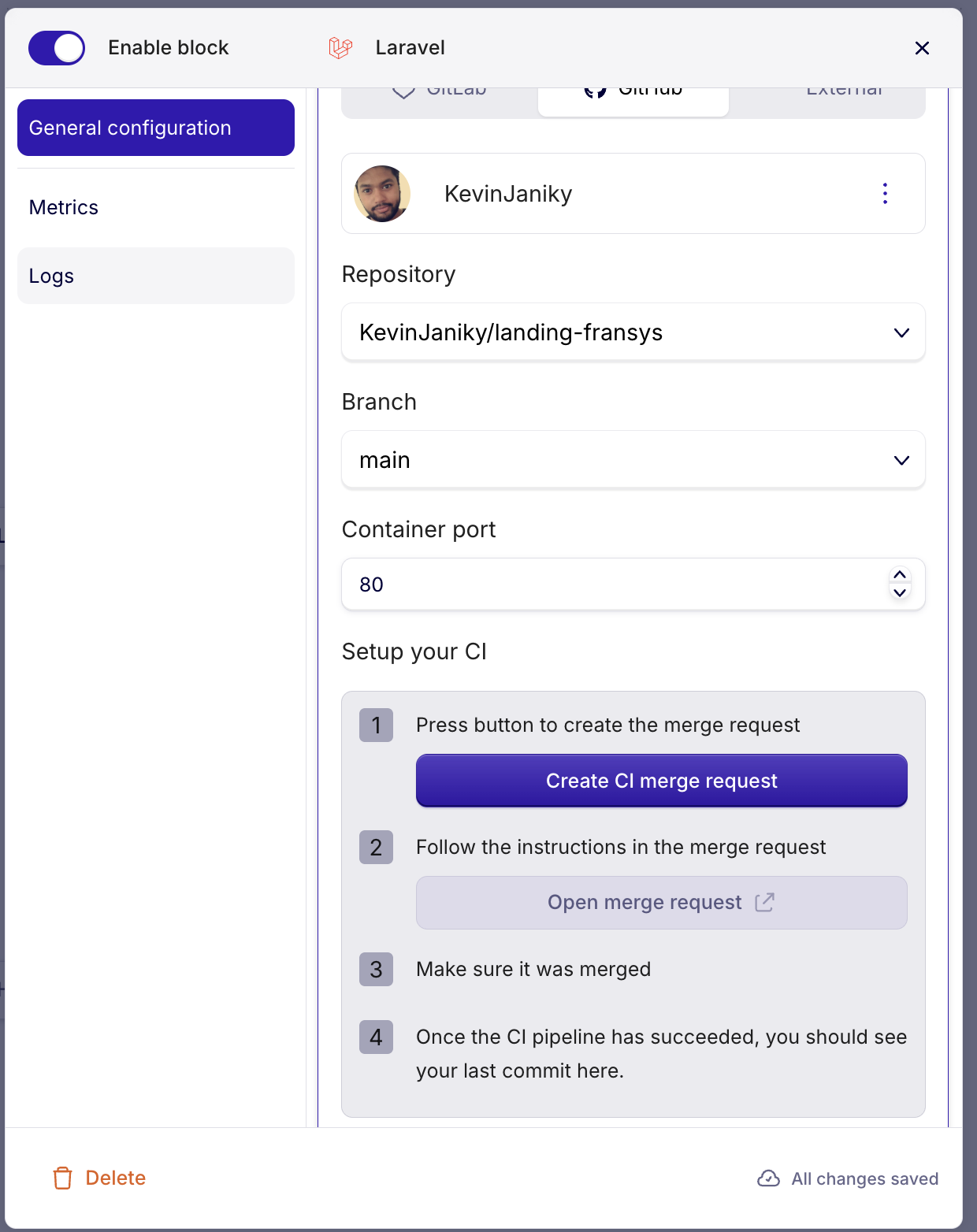

Step 4 — CI configures itself automatically. Fransys generates a complete CI/CD pipeline for your project. The interface guides you through 4 clear steps:

Laravel block — automatic CI setup

  1. Create the merge request — Fransys automatically creates an MR containing the CI configuration
  2. Follow the instructions — Open and review the merge request
  3. Merge — Integrate the CI into your branch
  4. Verify — Once the pipeline succeeds, your latest commit appears in Fransys

You don't have to write any CI file manually — Fransys handles it entirely.

Example: the Docker block​

The same principle applies to the Docker block.

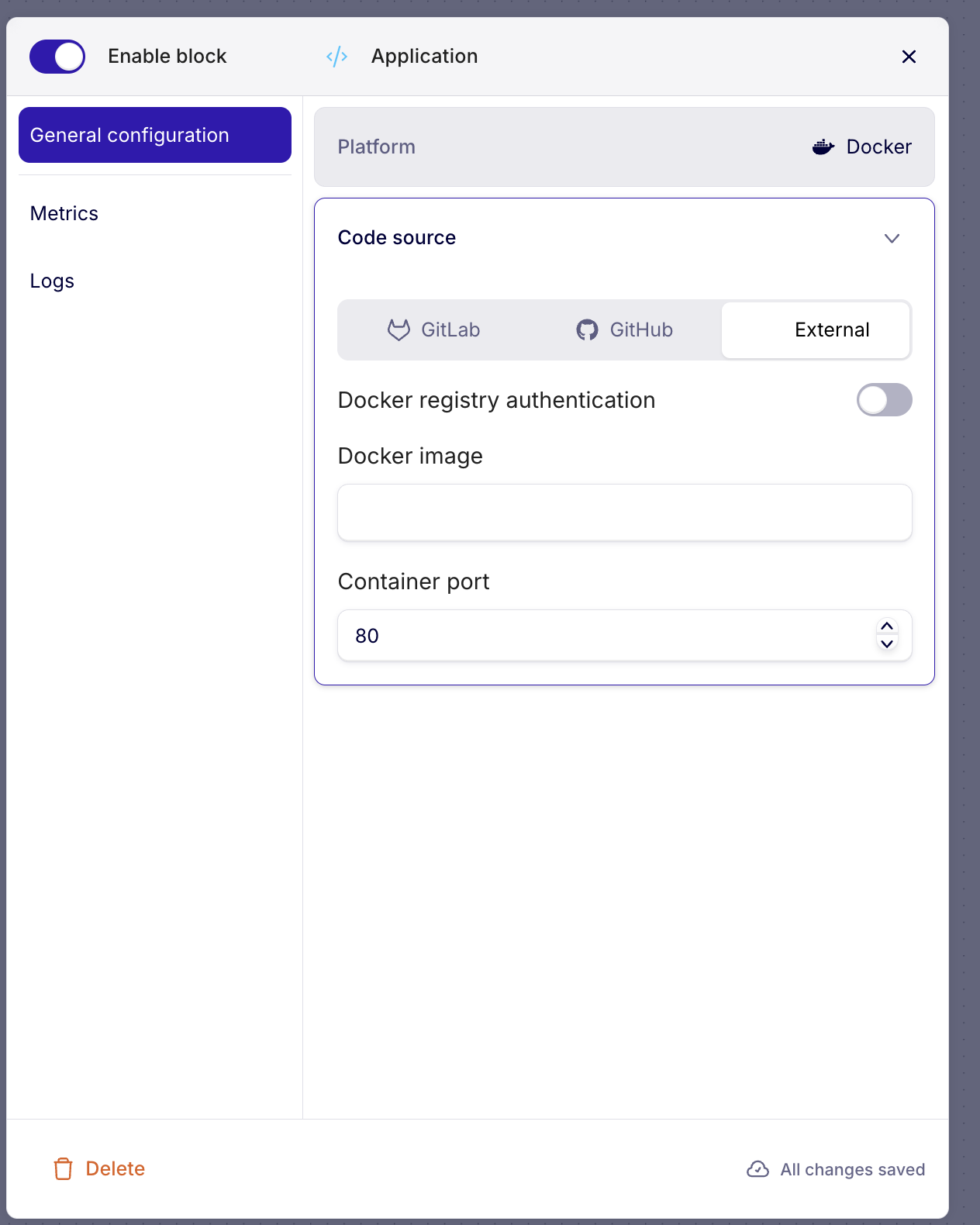

Initially, the block displays only the basic parameters: the source (GitLab, GitHub, or External), the Docker image, and the port. The sidebar contains only General configuration, Metrics, and Logs.

Docker block — initial configuration

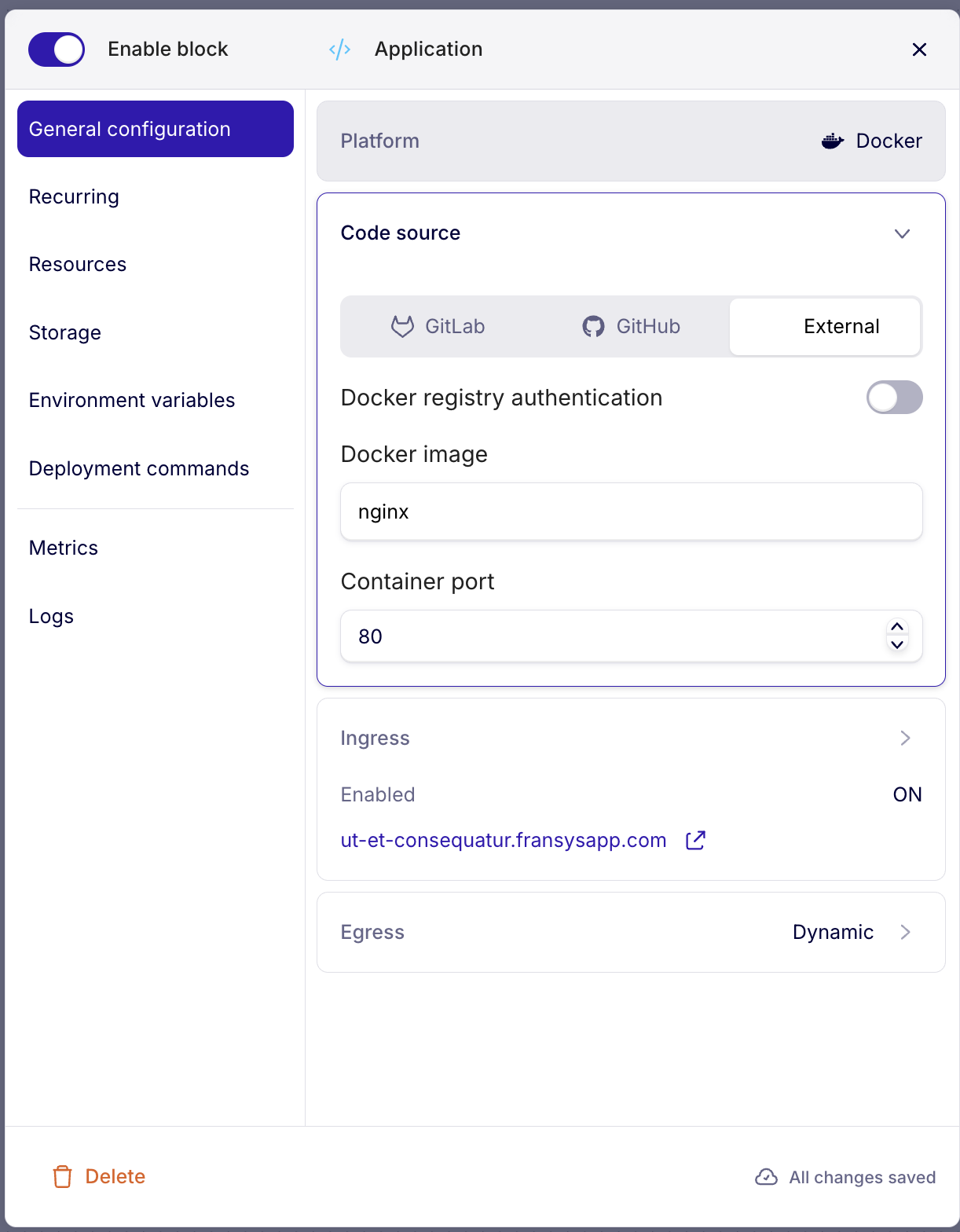

As soon as you provide a Docker image, the interface enriches: new tabs appear in the sidebar — Recurring, Resources, Storage, Environment variables, Deployment commands — and new sections like Ingress (with the auto-generated URL *.fransysapp.com) and Egress appear in the general configuration.

Docker block — complete configuration after providing the image

tip

This dynamic behavior applies to all Fransys blocks. The interface only shows you what's relevant at each moment. If a tab or field doesn't appear, it's because it's not yet necessary — configure the basic elements and the rest will follow.
